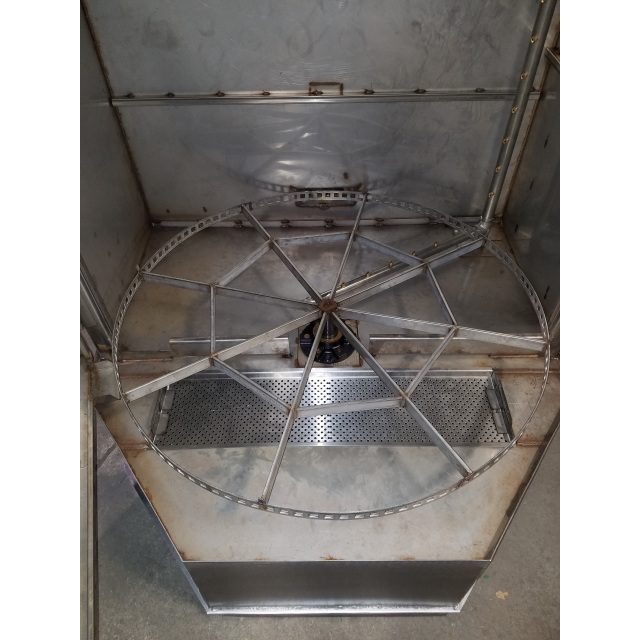

WA-SX-Jumbo (50-40) Stainless Steel Spray Wash Cabinet
The WA-SX-Jumbo (50-40) Stainless Steel Spray Wash Cabinet is equipped with:
Stainless Steel Cabinet Construction
Stainless Steel 2500 lb. Capacity Gear Drive Turntable
Stainless Steel Piping
Stainless Steel Parts Tree and Small Parts Basket
Stainless Steel Filter/Chip Tray
Stainless Steel Oil Skimmer w/15 Minute Cycle Timer
0 - 60 Minutes Variable Wash Cycle Timer
7.5HP High Pressure Scot Water Pump w/Baldor Motor
20,000 Watt Heat (Dual 10,000 watt elements)
Programmable 7 day timer to automatically control tank heater and oil skimmer operation
Digital Thermostat control
Turntable Manual Jog Control
Low Water Heater Safety Shutoff
40 lbs of Spray Wash Detergent included
Specifications
INSIDE HEIGHT
40 INCHES
INSIDE WIDTH
53 INCHES
OVERALL HEIGHT
67.5 INCHES
TURNTABLE DIAMETER
50 INCHES
LOAD CAPACITY
2500 LBS
TOTAL FLOOR SPACE
67" X 63"
CYCLE TIME
0-60 MINUTES
PUMP HORSEPOWER
7.5 HP
PUMP OUTPUT
175 GPM @53 PSI
HEATER
20KW (2 - 10KW ELEMENTS)
SOLUTION CAPACITY
200 GALLONS
FILTER AREA
378 SQ INCHES
ELECTRICAL REQUIREMENTS
240V 3 PHASE @70AMPS
480V 3 PHASE @35AMPS
TOTAL UNIT WEIGHT
1350 LBS
